Saltbox loft barndo

Switchgrass

A saltbox barndominium with two bedrooms down, an open loft above and a 44-foot porch

1,843 sq ft · 2 beds · 2 baths · 1 story + loft

Heated area: 1,843 sq ft
Bedrooms and baths: 2 beds · 2 baths
Shell: 44'-0" × 30'-0"
Plate height: 11'-0"
Roof pitch: 8:12 front, 16:12 back (offset ridge)
Porch: 44'-0" × 9'-8", 425 sq ft
Structure, as modeled: Standing-seam metal roof and vertical metal walls; clear-span frame lines and a separate loft floor laid out, framing not yet modeled
Stories: One story + loft

We also run Middle Tennessee Metals; these are designs we built specifically for barndominiums.

The idea

How it lives

One long porch shelters a compact block of bedrooms, baths and laundry. The roof is a true saltbox: the ridge sits five feet north of center, so the living room and kitchen rise into a tall space under the steep side. A 457 sq ft open loft sits over the middle of the plan and looks down into the living room.

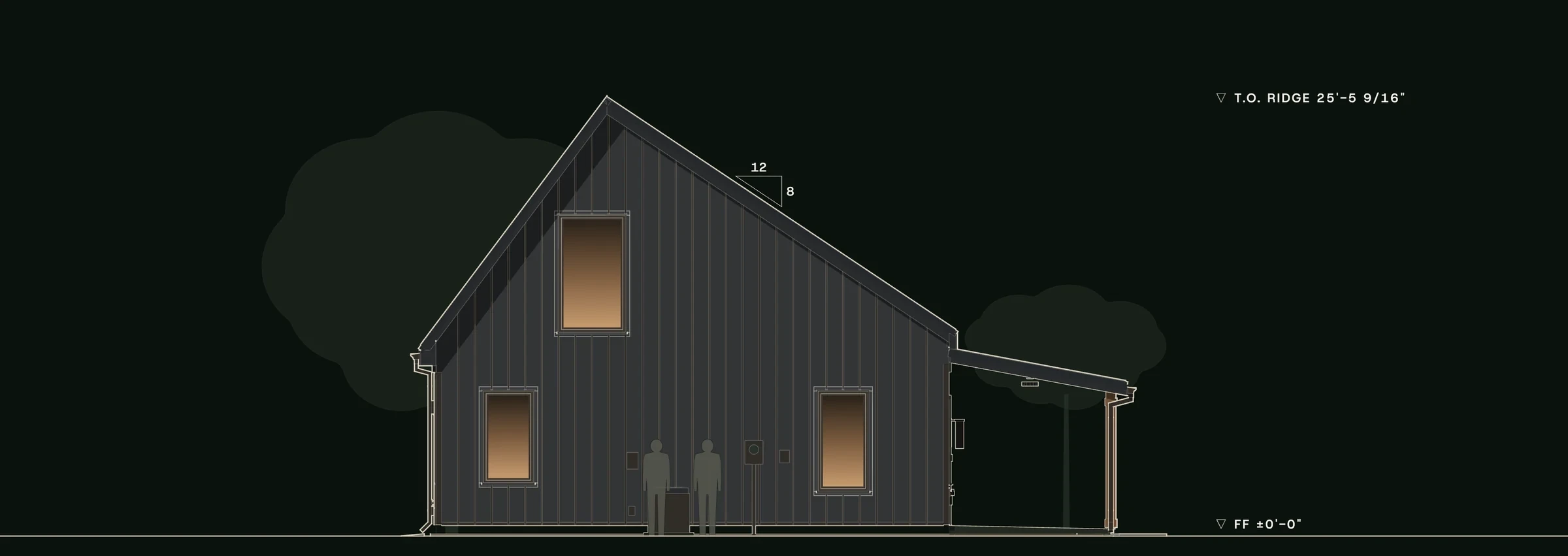

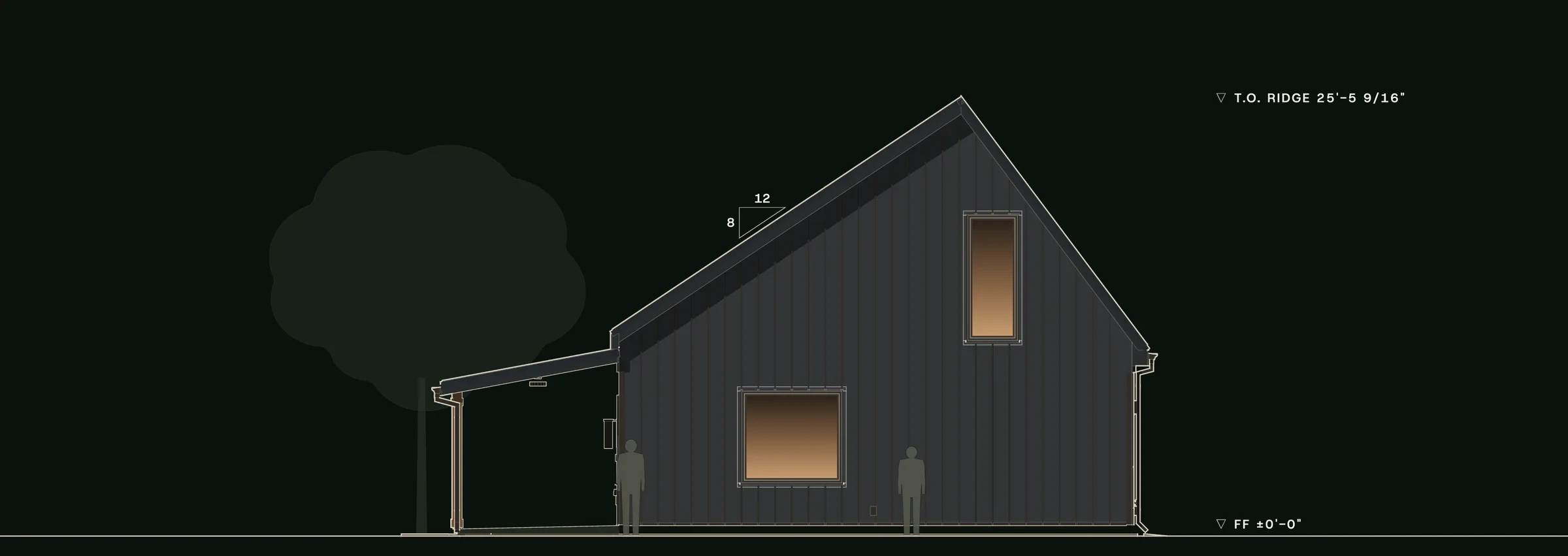

A real saltbox

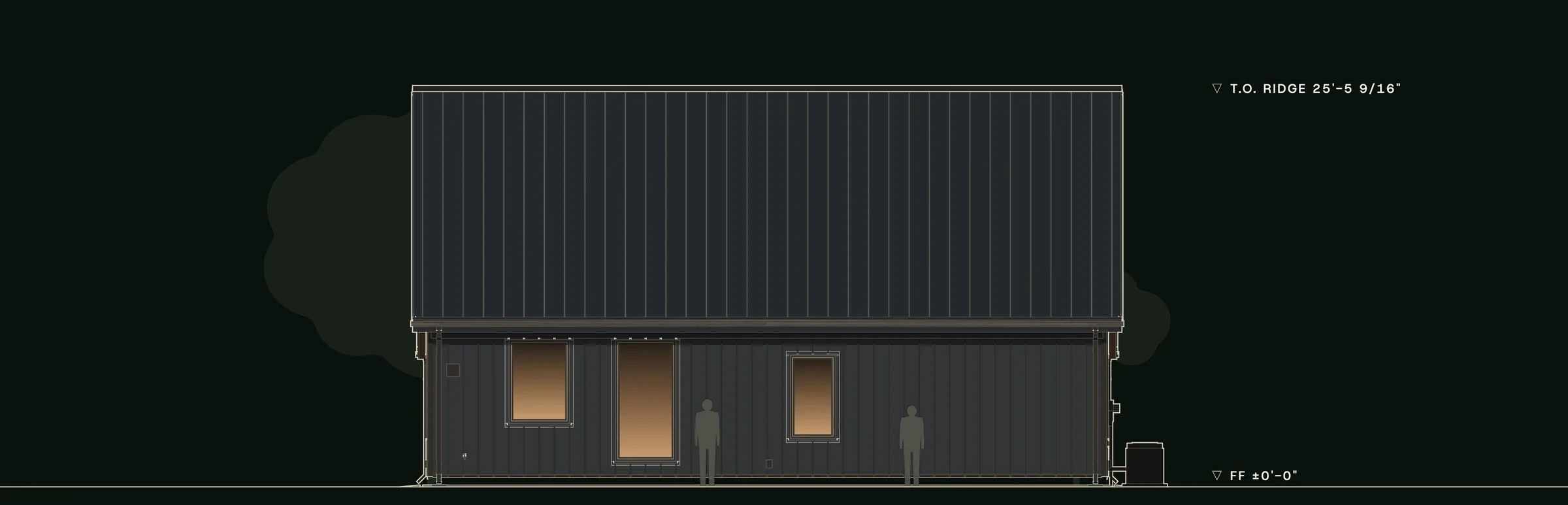

An 8:12 roof over the porch side and a steep 16:12 roof behind, with the ridge five feet off center.

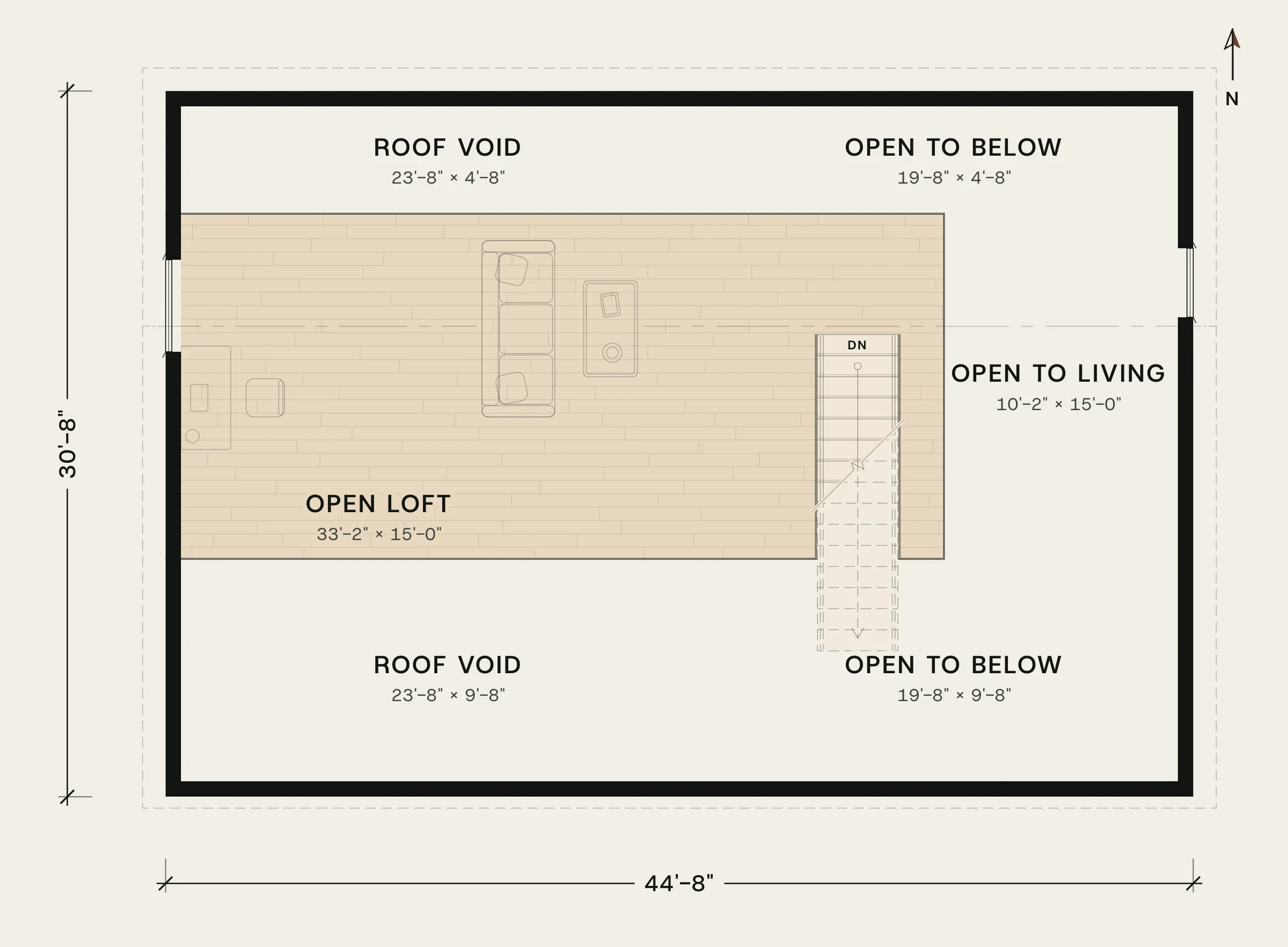

An open loft
457 sq ft of loft, all of it with at least 7 ft of headroom, over the middle of the plan: a lounge and desk, not a bedroom.
Bedrooms down
Both bedrooms, two baths, the laundry and a pantry are on the main floor, off one wide gallery.
A porch the length of the house

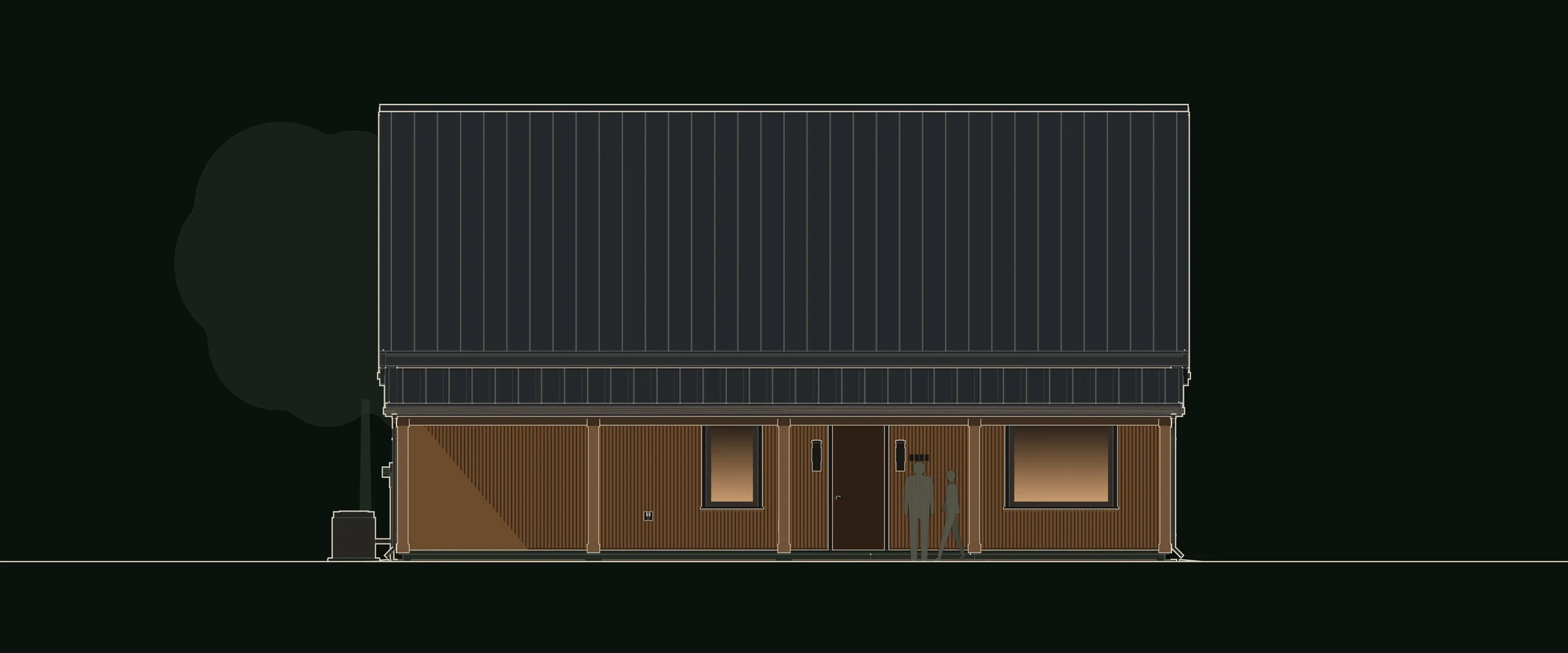

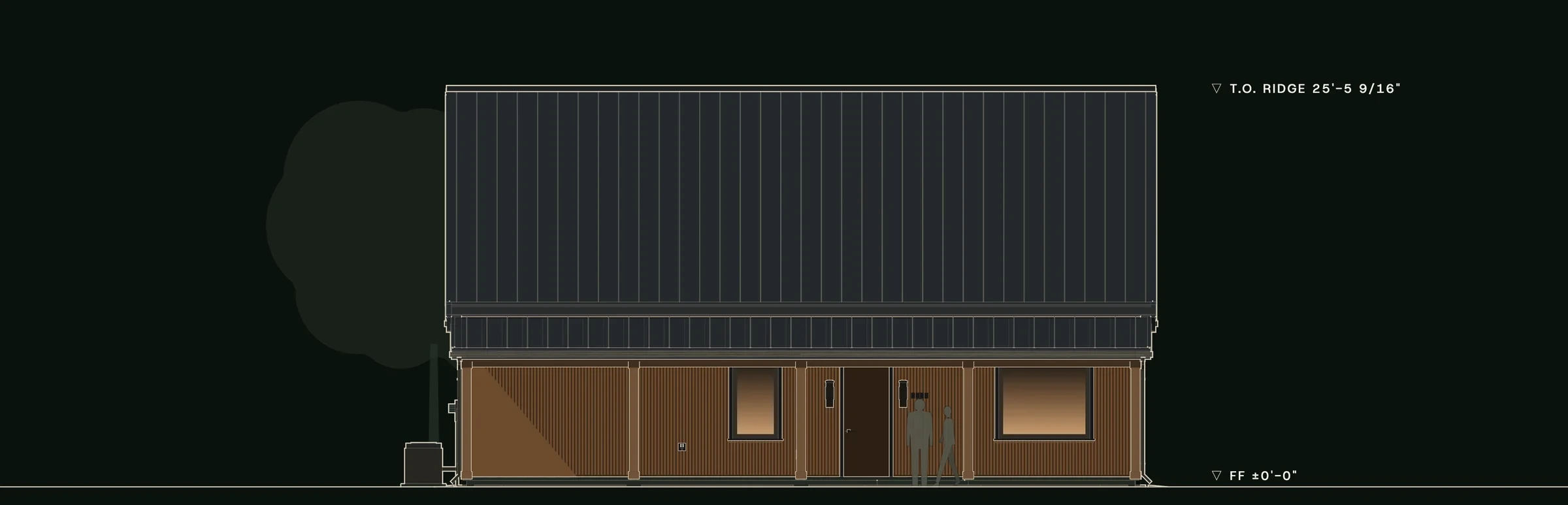

A 44-foot covered porch runs the whole front, on five posts.

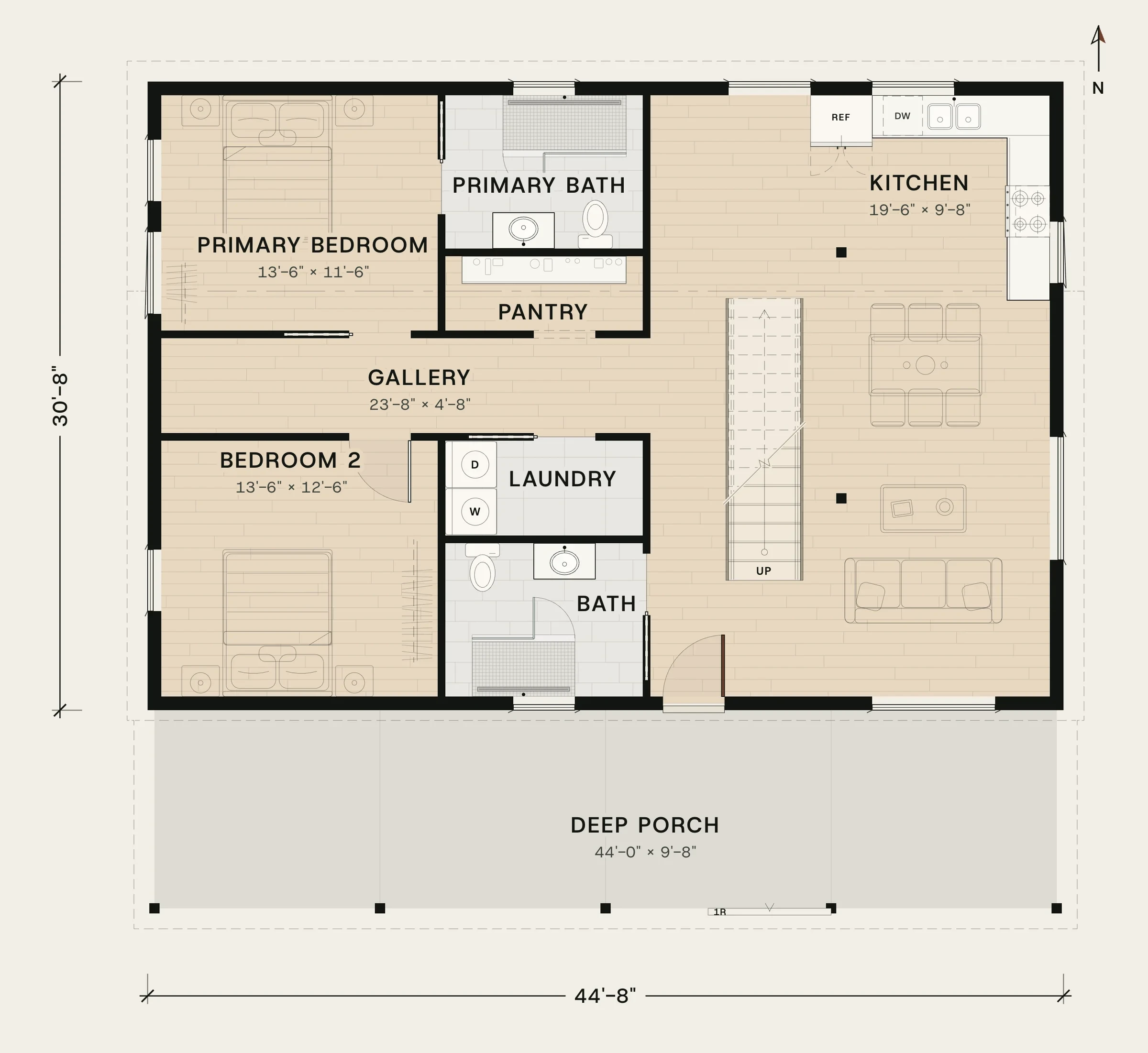

Floor plan
